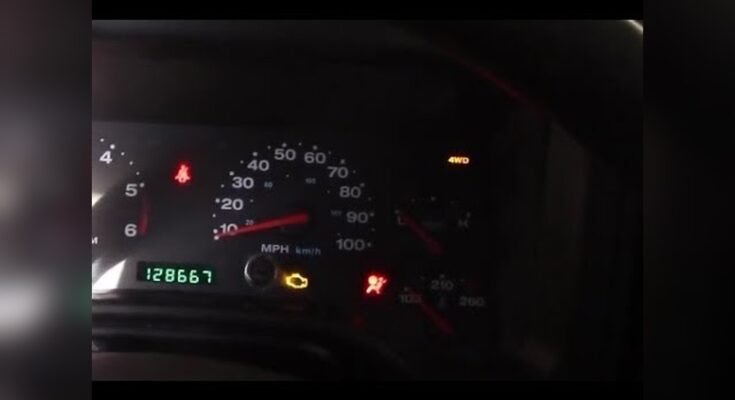

2006 Jeep Wrangler 4 Wheel Drive Light Not Working
When you drive a 2006 Jeep Wrangler, you expect it to handle tough roads and rough weather. The 4 wheel drive (4WD) system is a big reason people love this vehicle. It gives extra traction when you need it most—on mud, snow, or rocky paths.
But what happens when the 4 wheel drive light on your dashboard doesn’t work? This small issue can cause confusion and even safety problems if you don’t know whether your 4WD is engaged. Let’s look at why this happens, how you can diagnose the problem, and the best ways to fix it.
—
Understanding The 4wd Light And Its Role
The 4WD light on your dashboard is more than just a reminder. It tells you when your Jeep’s four-wheel drive system is active. This is important because using 4WD on dry pavement or at high speeds can damage your vehicle.
The light also helps you make smart driving choices in tough conditions.
When the light does not come on (or stays on when it shouldn’t), you might be unsure if 4WD is working. Some drivers ignore it, but that’s risky. For example, if you think 4WD is on but it’s not, you could get stuck in mud or snow.
If you think it’s off but it’s actually on, you might damage your drivetrain or tires.
Here’s a simple way to understand how the light works:
- When you shift into 4WD, a switch or sensor tells the computer (or in older models, just the light circuit) to turn on the 4WD light.
- When you shift back to 2WD, the same system turns the light off.
If something goes wrong in this chain—switch, sensor, wiring, or the bulb itself—the light won’t work as expected.
—
Common Causes Of 4wd Light Problems
Several things can cause your Jeep’s 4WD light to fail. Let’s break down the most common reasons and how they affect your vehicle.
1. Faulty 4wd Indicator Switch
On the 2006 Wrangler, there is a switch (often called a 4WD indicator switch or transfer case switch) on the transfer case. This small part senses when you shift into 4WD and tells the light to turn on.
- Problem: Dirt, age, or internal failure can keep the switch from working.
- Symptoms: The light never turns on, or it stays on even when you’re in 2WD.
Example: If you shift the lever into 4WD and nothing happens on the dashboard, the switch could be stuck or broken.
2. Bad Bulb Or Dashboard Cluster Issue
Sometimes, the problem is simple—the bulb behind the 4WD light burns out, or the cluster has a wiring problem.
- Problem: The bulb is dead, or the cluster circuit is damaged.
- Symptoms: Other lights on the dashboard might work, but the 4WD light does not, even during the “bulb check” when you start the car.
Example: Turn the key to “on” without starting the engine. Most dash lights should flash briefly. If the 4WD light never comes on, suspect the bulb.
3. Wiring Or Connector Problems
Wiring under your Jeep gets dirty, wet, and sometimes damaged by road debris. A loose, corroded, or broken wire can stop the signal from reaching the dashboard.
- Problem: Wires break or connectors get loose, especially near the transfer case.
- Symptoms: The light works sometimes but not always, or flickers when you hit bumps.
Example: If the light comes on only when you hit a pothole or after driving through water, check the wiring for damage or loose connections.
4. Transfer Case Issues
If the transfer case (the part that shifts power to all four wheels) is not fully engaging, it might not trigger the switch.
- Problem: Internal wear or linkage problems prevent full engagement.
- Symptoms: Difficult to shift into 4WD, or the vehicle acts like it’s in neutral when you try.
Example: If you have trouble moving the lever into 4WD, or the Jeep doesn’t “feel” like it’s in 4WD, the transfer case may need inspection.
5. Aftermarket Modifications
If you or a previous owner added a lift kit, changed the shifter, or did other modifications, the wiring or switch could be affected.
- Problem: Modified parts change the angle or reach of the switch.
- Symptoms: Light stopped working after upgrades or repairs.
Example: After installing a body lift, the shifter linkage might not reach the switch properly.
—
Diagnosing The Issue
Before you start replacing parts, take time to diagnose the problem. This can save you money and frustration. Here’s how to check step by step:
Step 1: Check The Bulb
Turn the ignition key to the “on” position without starting the engine. All dash lights should come on for a moment. If the 4WD light does not, it could be a burnt-out bulb.
- Remove the dashboard cluster and check the bulb.
- Replace with a new one if needed.
Step 2: Listen And Feel
Shift the transfer case lever while parked. You should feel a positive “click” as it moves into 4WD, and sometimes you’ll hear a faint mechanical noise. If the lever feels loose or doesn’t move smoothly, the linkage or transfer case could have a problem.
Step 3: Inspect The 4wd Switch
Find the 4WD indicator switch on the transfer case. It usually has a wire or two plugged into it.
- Unplug the connector and check for corrosion or loose fit.
- With the key on, use a test light or multimeter to check for voltage.
- Short the connector briefly with a wire; if the light comes on, the switch is bad.
Step 4: Check Wiring And Connectors
Follow the wiring from the transfer case up to the firewall and dash. Look for:
- Broken or frayed wires
- Signs of rubbing or cuts
- Corrosion at plugs
Wiggle the wires with the ignition on and see if the light flickers.
Step 5: Test The 4wd System
Drive at low speed in a safe area (like a parking lot). Shift into 4WD and make a tight turn. You should feel extra resistance and possibly some tire scrub if 4WD is engaging.
Tip: If the Jeep acts as if it’s in 4WD but the light doesn’t work, the problem is likely with the switch, bulb, or wiring—not the transfer case.
—
Fixing The Problem
Once you know what’s wrong, fixing the 4WD light is usually straightforward.
Replacing The 4wd Indicator Switch
This is one of the most common repairs. The switch is inexpensive and easy to find at auto parts stores or Jeep dealers.
- Unplug the old switch from the transfer case.
- Use a wrench to unscrew it.
- Install the new switch, making sure the threads are clean.
- Plug the wire back in and test the system.
Note: Some fluid may leak out when you remove the switch. Have a rag ready and check your transfer case fluid level afterward.
Changing The Bulb
- Remove the dashboard cluster (usually a few screws).
- Find the 4WD indicator bulb and replace it with the same type.
Pro tip: While you’re in there, check other bulbs so you don’t have to open the dash again soon.
Repairing Wiring Or Connectors
- Use electrical cleaner on dirty connectors.
- Replace any damaged wires with similar gauge wire.
- Use heat-shrink tubing to protect new connections.
Adjusting Or Repairing The Transfer Case
If the lever or linkage is out of adjustment, consult your owner’s manual or a repair guide for the right procedure. It may involve adjusting the linkage rods or bolts under the Jeep.
If the transfer case is internally damaged, it’s best to see a professional mechanic.
Undoing Problematic Modifications
If you discover that a lift kit or other modification moved the switch or linkage, you may need special brackets or adapters to restore proper function. Many Jeep forums have guides for fixing common issues after modifications.
—
Preventing Future 4wd Light Problems
Good habits and preventive care can help avoid more trouble.
- Keep your undercarriage clean. Mud and salt accelerate rust on wires and connectors.
- Use 4WD regularly. Shifting into 4WD every month helps keep the system moving and prevents switches from sticking.
- Inspect wiring during oil changes. A quick look under your Jeep can catch problems early.
- Fix leaks promptly. Transfer case leaks can damage switches and wiring nearby.
—
Two Non-obvious Insights
- The 4WD light does not confirm mechanical engagement. Many drivers think if the light is on, 4WD is guaranteed to be working. But the light only tells you the lever or switch is in the 4WD position—not that all mechanical parts inside the transfer case are engaged. If you suspect 4WD is not working (for example, you get stuck easily), get a hands-on inspection.
- Aftermarket shifter boots or console changes can pinch wires. If you have replaced the center console or floor mats, check that nothing is pressing or pulling on the wires leading to the 4WD switch. Sometimes, a simple interior change can pull the connector off the switch without you noticing.
—
When To See A Mechanic
Some problems are easy to fix at home, but others require special tools or skills. Consider seeing a professional if:
- You don’t feel comfortable working under your vehicle.
- The transfer case is making strange noises.
- The 4WD system is not engaging at all, even when the light works.
- You’ve checked all simple fixes and the problem remains.
Jeep specialists and good off-road shops see these problems often and can usually diagnose them quickly.
—
Trusted Resources
For more technical details, diagrams, and community advice, the [Jeep Wrangler Forum](https://www.wranglerforum.com/) is a valuable resource. It’s full of real-world tips from owners and mechanics who have seen every issue imaginable.
—
Final Thoughts
A 4WD light that doesn’t work on your 2006 Jeep Wrangler is usually a small problem, but it can cause big headaches if ignored. With some simple checks—looking at the switch, bulb, and wiring—you can often diagnose the issue at home.
Most fixes are affordable and don’t need special tools. If the problem is deeper, like a transfer case issue, it’s worth getting expert help to keep your Jeep safe and reliable.
Understanding how the system works, and paying attention to warning signs, will help you get the most from your Jeep Wrangler—on and off the road. And remember: the 4WD light is your friend, but it’s not the whole story. Trust your vehicle, but trust your own checks even more.
If you keep your 4WD system in good shape, your Jeep will reward you with years of dependable service, no matter where your adventures take you.
