If you drive a Jeep Wrangler, you know the thrill of adventure. But sometimes, factory headlights don’t give you the brightness you need—especially on dark trails or busy highways. Upgrading to LED headlights is a smart move. LEDs are brighter, use less power, and last much longer than standard halogen bulbs. If you’ve never installed them before, the process might seem confusing, but with the right guidance, you can do it yourself and enjoy the results for years. This article will help you understand everything about installing LED headlights on a Jeep Wrangler. You’ll learn what you need, step-by-step instructions, safety tips, and common mistakes to avoid. Whether you’re a beginner or have some experience, you’ll get practical advice and non-obvious insights to make your upgrade smooth and successful.
Why Upgrade To Led Headlights On Your Jeep Wrangler?
LED headlights are not just about style. They offer real benefits that make your driving experience safer and more enjoyable. First, LEDs are much brighter than halogen bulbs. This brightness helps you see obstacles, animals, or road signs sooner. Second, LEDs use less power, which means less strain on your battery and alternator. Third, LEDs last longer—often up to 30,000 hours compared to 1,000 hours for halogen bulbs. This means fewer replacements and lower costs over time.
Another advantage is the color temperature. Most LED headlights emit cool white light (6000K-6500K), which is closer to daylight. This improves visibility and reduces eye strain. Also, LED headlights give your Jeep a modern, rugged look. Many Jeep owners appreciate how LEDs enhance both style and function.
What many beginners miss is that LEDs also provide a wider beam pattern. This means you see not just further ahead, but more to the sides—important for off-roading. The durability of LEDs is another hidden benefit; they handle vibrations and bumps better, which is crucial for a Jeep Wrangler.
Understanding Jeep Wrangler Headlight Types And Compatibility
Before you buy LED headlights, you must know which type fits your Jeep Wrangler. Jeep Wranglers come in different models and years, and the headlight size or connector can vary. Most models use 7-inch round headlights (especially JK and TJ models), but newer JL models use a different setup.
Here’s a quick comparison:
| Jeep Wrangler Model | Headlight Size | Connector Type | Notes |
|---|---|---|---|
| TJ (1997-2006) | 7-inch round | H4 | Simple plug-and-play |
| JK (2007-2018) | 7-inch round | H13 | May need adapter |
| JL (2018-present) | 9-inch round or unique | Varies | Advanced wiring, more sensors |
You need to check your Jeep’s manual or measure the headlight before buying. Also, some LED kits include adapters for different connectors. If your Jeep has daytime running lights (DRLs) or special wiring, you might need extra harnesses or anti-flicker modules.
Choosing The Right Led Headlights For Jeep Wrangler
Picking the right LED headlights is not just about size. You should look for:
- Brightness (Lumens): Most LED headlights offer between 3,000 and 6,000 lumens per bulb. Higher lumens mean more light, but too much can dazzle other drivers.
- Beam Pattern: Choose a headlight with a clear low beam and high beam. Some cheap LEDs scatter light, causing poor visibility and glare.
- Waterproof Rating (IP): Look for at least IP67 or IP68. This means the headlights can handle rain, mud, and splashes—important for off-road use.
- Color Temperature: Standard is 6000K (cool white). Some prefer slightly warmer or cooler light. Make sure both headlights match.
- Compatibility: Double-check the connector and size. Some JL models require special kits.
- Warranty: A good LED headlight should come with at least a 2-year warranty. This covers defects and early failures.
Many beginners focus only on brightness, but ignore beam pattern and waterproofing. The beam pattern is critical—bad patterns can make night driving harder. Also, waterproofing is vital because Jeeps often face wet and dirty conditions.
Tools And Materials Needed For Installation
To install LED headlights on your Jeep Wrangler, you need a few basic tools:
- LED headlight kit (with adapters/harnesses if needed)
- Screwdriver set (usually Phillips and flathead)
- Torx driver set (Jeep uses Torx screws)
- Socket wrench set
- Electrical tape (for extra safety)
- Gloves (optional, keeps hands clean)
- Zip ties (for neat wiring)
Some LED kits include all needed adapters. If not, you may need to buy extra harnesses or anti-flicker modules. Always check the kit contents before starting.
Safety Precautions Before Starting
Safety matters, even for simple upgrades. Here are important steps:
- Disconnect the battery: Always unplug the negative terminal before working with headlights. This prevents shocks and protects your electrical system.
- Work in a well-lit area: Good lighting helps you see wiring clearly and avoid mistakes.
- Allow headlights to cool: If you’ve just used your Jeep, let the headlights cool before touching them.
- Handle bulbs carefully: Avoid touching LED bulbs directly. Oils from your skin can damage some types, although most LED bulbs are safer than halogens.
- Wear gloves: Protects your hands and keeps bulbs clean.
Many new DIYers skip disconnecting the battery. This can cause short circuits or even damage the Jeep’s computer. Always make battery safety your first step.

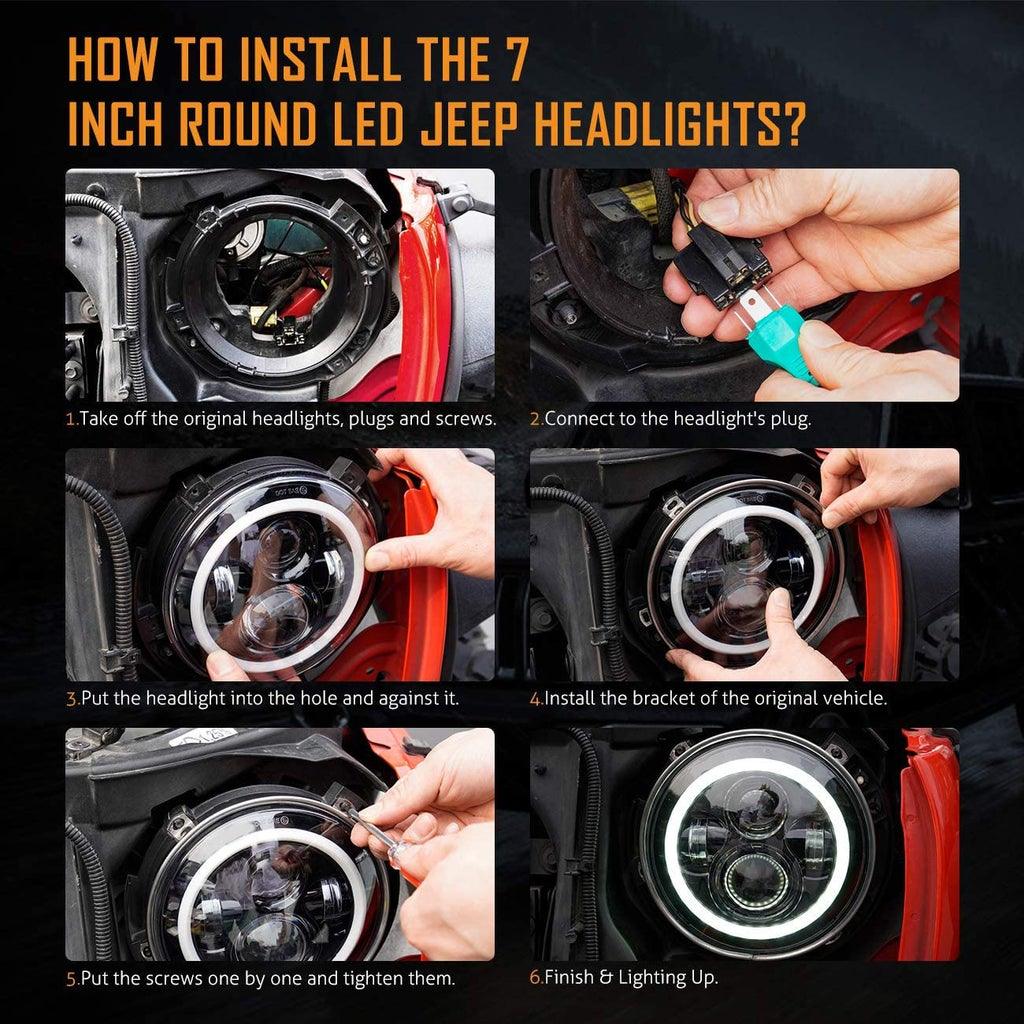

Step-by-step Guide To Installing Led Headlights
Let’s walk through the installation. These steps cover most Jeep Wrangler models (JK, TJ, JL). If your Jeep is unique, check your manual or the LED kit’s instructions.
1. Remove The Front Grille
Most Jeep Wranglers require the grille to be removed for access.
- Open the hood.
- Locate the plastic clips along the top of the grille. Use a flathead screwdriver to gently pop them up.
- Pull the grille forward. It may need a little force, but avoid bending it.
- Set the grille aside safely.
2. Unscrew And Remove The Headlight Bezels
The headlight bezels are rings holding the headlights in place.
- Use a Phillips or Torx screwdriver to remove the screws around the bezel.
- Carefully pull the bezel off.
3. Remove The Old Headlights
- Gently pull the headlight forward.
- Disconnect the wiring harness from the back.
- Set the old headlight aside.
4. Connect The Led Headlight
- Plug the LED headlight into the Jeep’s wiring harness.
- If your kit includes an adapter (like H4 to H13), attach it now.
- For JL models, you may need an anti-flicker module or extra harness.
- Secure all connections with electrical tape if needed.
5. Install The Led Headlight
- Place the LED headlight into the slot.
- Reattach the bezel ring and tighten screws.
- Repeat for the other headlight.
6. Test The Headlights
- Reconnect the battery negative terminal.
- Turn on the headlights. Check low and high beams.
- If you notice flickering or error messages, check all connections and try an anti-flicker module.
7. Reinstall The Front Grille
- Align the grille with the front of the Jeep.
- Push it into place. Reattach the plastic clips.
- Close the hood.
This process usually takes 30–60 minutes for both headlights. Beginners often forget to check both beams before finishing. Always test before reinstalling the grille.
Common Mistakes And How To Avoid Them
Many Jeep owners make simple mistakes when installing LED headlights:
- Not disconnecting the battery: This can damage electrical parts or cause a short.
- Forgetting adapters: Some kits require H4/H13 adapters, especially for JK models.
- Ignoring anti-flicker modules: If your headlights flicker, you need these modules to fix power issues.
- Not testing before finishing: Always check low/high beams before closing up.
- Touching bulbs: Oils can damage some bulbs, especially halogen. With LEDs, it’s less risky, but still good practice.
- Loose wiring: Secure wires with zip ties to prevent rattling or disconnections.
- Incorrect beam alignment: After installation, headlights may point too high or low. Adjust as needed for safe driving.
A non-obvious tip: Some Jeep Wranglers have a fuse for headlights. If your new LEDs won’t turn on, check the fuse box. Also, if you notice dim lights after installation, it could be a grounding issue—tighten all connections.
Adjusting Led Headlight Aim For Maximum Safety
After installing, you need to adjust the aim. Poorly aimed headlights can blind other drivers or reduce your own visibility.
How To Adjust Headlight Aim
- Park your Jeep 25 feet from a flat wall or garage door.
- Mark the center of each headlight beam on the wall (use masking tape).
- Use the adjustment screws on the headlight assembly to raise or lower the beam.
- The top of the low beam should be at or just below the height of the headlight (on the wall).
- Ensure the beams are even and not too high.
This process is simple, but many people skip it. Proper aim is crucial for safety and to avoid fines.
Led Headlight Performance: Real-world Benefits
Switching to LED headlights improves real-world driving. Here are some actual performance differences:
| Feature | Halogen | LED |
|---|---|---|
| Brightness | 1,000-1,500 lumens | 3,000-6,000 lumens |
| Power Usage | 55W per bulb | 20W per bulb |
| Color Temperature | 3,000K (yellow-white) | 6,000K (cool white) |
| Lifetime | 1,000 hours | 30,000+ hours |
| Durability | Sensitive to vibration | Handles vibration well |
These numbers show why LED headlights are a strong upgrade. The longer lifespan and lower power usage are especially important for off-road adventures.
How To Choose The Best Led Headlight Brand
There are many brands, but not all are equal. Here’s how to compare:
| Brand | Warranty | Brightness | Waterproof Rating | Price (pair) |
|---|---|---|---|---|
| JW Speaker | 5 years | 5,000 lumens | IP67 | $350 |
| KC HiLiTES | 2 years | 4,500 lumens | IP68 | $280 |
| Truck-Lite | 3 years | 3,600 lumens | IP67 | $220 |
| Generic Amazon | 1 year | 2,800 lumens | IP65 | $100 |
Choose a brand with strong warranty, high waterproof rating, and proven brightness. Avoid cheap, no-name brands—they often have poor beam patterns and unreliable parts.
Practical Tips For A Smooth Installation
- Lay out all parts before starting. Check adapters and harnesses.
- Clean the headlight area. Dust and dirt can affect connections.
- Label wires if needed. Some harnesses look similar—mark them to avoid confusion.
- Take photos as you go. If you forget how something fits, photos help you retrace steps.
- Ask for help. If unsure, call a friend or check forums like Jeep Wrangler forums.
A hidden tip: Some LEDs have cooling fans. Listen for noise after installation. If a fan is loud, it might be defective. Quality LEDs run quietly.
Troubleshooting Led Headlight Issues
Sometimes, problems appear after installation:
- Flickering: Usually fixed with anti-flicker modules or wiring harness.
- Error messages: JL models may show headlight errors. Use a CANbus adapter.
- Dim lights: Check battery, connections, or grounding.
- One headlight not working: Test the bulb in the other slot. If it works, the issue is with the harness or connector.
- Moisture inside: Make sure the headlight seals are tight. If water gets in, dry the headlight and reseal.
Don’t panic if you face problems. Most issues are simple wiring or adapter mistakes.
Maintaining Your Led Headlights
LED headlights need little maintenance, but some steps keep them at peak performance:
- Clean lenses regularly. Dirt and bugs can block light.
- Check connections every few months. Off-roading can shake wires loose.
- Inspect for moisture. If you see fog inside, reseal the headlight.
- Test high and low beams. Make sure both work before long trips.
LEDs last a long time, but regular checks prevent problems before they start.
Legal Considerations: Staying Compliant
Upgrading headlights can affect legality. Most areas require headlights to meet certain standards:
- Brightness limits: Too-bright LEDs may not be legal.
- Beam pattern: Must not blind other drivers.
- Color temperature: Some areas restrict to 6,000K or lower.
Check local laws before upgrading. Some states require DOT-approved headlights. Using non-approved LEDs can result in fines or inspection failures.
For more legal information, see the NHTSA guidelines.
Frequently Asked Questions
How Long Do Led Headlights Last On A Jeep Wrangler?
Most LED headlights last 30,000–50,000 hours. That’s about 10–15 years of normal use. This is much longer than halogen bulbs, which last only 1,000 hours.
Are Led Headlights Legal For All Jeep Wrangler Models?
LED headlights are legal if they are DOT-approved and have a proper beam pattern. Some aftermarket LEDs may be too bright or have incorrect color. Check local laws before buying.
Will I Need Extra Wiring Or Adapters For My Jeep Wrangler?
It depends on your model. JK Wranglers often need H13 adapters. JL models may require CANbus adapters or anti-flicker modules. Always check your LED kit and Jeep manual.
Can I Install Led Headlights Without Professional Help?
Yes, most Jeep owners can install LEDs themselves. The process is plug-and-play for many models. With basic tools and careful steps, you can complete the job in about an hour.
What Is The Biggest Mistake When Installing Led Headlights?
The biggest mistake is not adjusting the headlight aim after installation. Poor aim can reduce visibility and blind other drivers. Always test and adjust your lights for safety.
Upgrading your Jeep Wrangler with LED headlights is one of the best investments you can make for safety, style, and performance. With careful planning, the right tools, and step-by-step guidance, you’ll enjoy brighter nights and better adventures—whether on city streets or rocky trails.
If you follow the advice here, you’ll avoid common mistakes and get the most from your new headlights for years to come.
