Pioneer DMH-2770NEX Troubleshooting: Quick Fix Guide

Most Pioneer DMH-2770NEX issues come from wiring, settings, firmware, or phone connection problems.

If you are dealing with Pioneer DMH-2770NEX troubleshooting, you are probably trying to get the unit back to smooth, everyday use without guessing your way through it. I have worked through enough car audio setups to know that most problems are small at first, then grow annoying fast. The good news is that the Pioneer DMH-2770NEX is usually very fixable once you know where to look, and this guide will walk you through the real causes, smart checks, and practical fixes that actually help.

Common Pioneer DMH-2770NEX Problems and What They Usually Mean

The Pioneer DMH-2770NEX is a solid digital media receiver, but like any head unit, it can run into a few common problems. Most issues are not random. They usually point to power, ground, wiring, phone pairing, or settings.

Here are the problems people run into most often:

• No power at all: This often means a fuse, wiring, or ground issue.
• Screen turns on but no sound: This can point to speaker wiring, amplifier settings, or muted output.
• Apple CarPlay or Android Auto will not connect: This is usually a cable, phone permission, or USB issue.

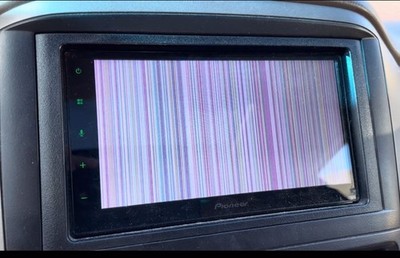

• Touchscreen lag or freeze: This may come from software glitches or a weak connection.
• Bluetooth drops out: This can happen because of pairing conflicts, phone settings, or interference.
• Radio has poor reception: This is often related to antenna connection or signal issues.

In my experience, the biggest mistake is assuming the unit itself is broken too quickly. Most of the time, the Pioneer DMH-2770NEX is fine, and the problem sits somewhere around it.

Start With the Basics Before Deep Troubleshooting

Before you start pulling panels apart, check the easy stuff first. This saves time and keeps you from chasing a problem that has a simple cause.

Do these checks in order:

1. Confirm the vehicle has power

   • Make sure the ignition is in the correct position.
   • Check whether other accessories work normally.

2. Inspect the fuse

   • Look at the vehicle fuse and the head unit fuse.
   • Replace any blown fuse with the correct rating.

3. Check the wiring harness

   • Confirm the main power, accessory, ground, and speaker wires are secure.
   • Loose connections cause a lot of strange behavior.

4. Test the ground

   • A bad ground can make the unit act dead or unstable.
   • Use a clean metal point on the chassis.

5. Verify the display settings

   • Brightness, dimmer, and parking brake settings can affect how the screen behaves.

A simple visual inspection often reveals the answer faster than a long diagnostic session. I once spent an hour checking software when the real issue was a loose ground wire behind the dash. That kind of thing happens more often than people think.

Power Issues on the Pioneer DMH-2770NEX

If your Pioneer DMH-2770NEX will not turn on, starts and shuts off, or resets while driving, focus on the power path first. Power problems are among the most common Pioneer DMH-2770NEX troubleshooting cases.

Check the constant and switched power wires

The unit needs both constant power and accessory power. If either one is wrong, the system may lose memory, fail to boot, or restart when the key changes position.

Watch for these signs:

• The unit loses settings every time the car turns off
• The unit only powers on in certain ignition positions
• The unit resets when cranking the engine

Inspect the ground connection

A weak ground acts like a shaky foundation under a house. The whole system can wobble.

Make sure:

• The ground wire is short and secure
• The connection point is bare metal
• There is no paint, rust, or dirt under the terminal

Check for low voltage

Low battery voltage can make the receiver act strange. This is common if the vehicle battery is weak or the charging system is failing.

If you notice dimming lights, slow cranking, or repeated resets, test the battery and alternator. A head unit cannot perform well if the vehicle voltage is unstable.

Look for fuse problems

If the unit is completely dead, inspect the fuse at the back of the receiver and the vehicle fuse panel. Replace only with the recommended fuse rating.

Using the wrong fuse may create more damage than the original problem. That is one of those mistakes that turns a small fix into a bigger repair.

Screen Problems, Freezing, and Touch Response Issues

A display problem does not always mean the touchscreen is broken. Sometimes it is a software hiccup, a settings issue, or a bad connection.

If the screen is blank

Try these steps:

• Increase brightness
• Check dimmer settings
• Confirm the unit is powered on
• Inspect the display harness connections

If the display is on but very dark, it may be stuck in night mode or dimmed by the vehicle lighting circuit.

If the screen freezes

Try a restart first. If that does not work, use the reset function on the unit.

Helpful steps:

• Turn the vehicle off
• Wait a few minutes
• Restart the system
• If needed, use the reset button

If touch controls feel off

Touchscreen misalignment can happen after installation or after a glitch.

Try to:

• Clean the screen gently
• Remove moisture
• Check for screen calibration options
• Update the firmware if available

I have seen owners think the screen was failing when the real issue was a dirty display or a phone app causing the system to lag. Electronics can be dramatic, but they are often not as broken as they seem.

Apple CarPlay and Android Auto Troubleshooting

One of the biggest reasons people buy the Pioneer DMH-2770NEX is for smartphone integration. So when CarPlay or Android Auto does not work, it feels like the whole unit has failed.

If your phone will not connect

Try this order:

1. Use a certified USB cable

   • Cheap cables often charge but do not transfer data well.

2. Try another USB port or connection

   • A damaged cable or port can block data.

3. Unlock the phone

   • Some phones will not connect properly while locked.

4. Check phone permissions

   • CarPlay and Android Auto need access rights on the phone.

5. Remove old pairings

   • Delete outdated Bluetooth and USB pairings on both the phone and receiver.

If CarPlay connects but acts unstable

This often happens because of cable wear, phone settings, or software version mismatch. Updating the phone OS and receiver firmware can help.

Also check:

• Background apps that interfere with connection
• USB debris inside the port
• App permissions for navigation, contacts, and messages

If Android Auto keeps dropping

Android Auto can be sensitive to cable quality. It can also fail if battery optimization is restricting the app.

A few good habits:

• Use the original cable if possible
• Turn off battery saver for Android Auto
• Keep the phone software updated
• Restart both the phone and the receiver

In real use, I have found that a strong cable and a clean USB port solve more than half of Android Auto complaints. It sounds almost too simple, but that is usually the truth.

Bluetooth Pairing and Audio Problems

Bluetooth problems are common in Pioneer DMH-2770NEX troubleshooting because multiple devices can conflict with each other. If your phone pairs but audio cuts out, the issue may be with the connection profile, not the speaker system.

When Bluetooth will not pair

Try these fixes:

• Delete the receiver from the phone’s Bluetooth list
• Delete the phone from the Pioneer memory
• Restart both devices
• Pair again from scratch
• Make sure the phone is not already connected to another device

When call audio is weak or distorted

This may involve the microphone, phone settings, or signal interference.

Check the following:

• Microphone placement
• Volume levels for calls and media
• Whether another app is using the microphone
• Speaker wiring and balance settings

When music stutters or drops out

This can happen due to interference, distance, or phone multitasking. Keeping the phone close to the unit usually helps.

You should also:

• Turn off unused Bluetooth devices nearby
• Close heavy background apps
• Forget and re-pair the device if the issue continues

Bluetooth is like a crowded room. If too many devices are talking at once, the connection gets messy.

Sound Problems: No Audio, Low Volume, or Distortion

If the screen works but there is no sound, the troubleshooting moves into audio output. This is one of the most important parts of Pioneer DMH-2770NEX troubleshooting because it can point to wiring, speaker load, or amp settings.

No sound at all

Check these items first:

• Volume is not muted
• Fader and balance are centered
• Speaker wires are connected correctly
• External amplifier turn-on wire is working

If the unit uses an amplifier, make sure the amp is powered and not in protect mode.

Low volume

Low volume can come from a few places:

• Gain settings set too low
• Incorrect speaker wiring
• Faulty speaker
• Phone volume not turned up enough

It is worth testing each source. Radio, Bluetooth, USB, and CarPlay may not all behave the same way.

Distorted audio

Distortion may mean the speakers are being pushed too hard or the signal is clipped. It can also happen when the EQ settings are too aggressive.

Try this:

• Reset EQ to flat
• Turn off bass boost
• Reduce source volume slightly
• Check for damaged speakers

I usually recommend starting from clean sound and tuning slowly. That way, you know the distortion came from the system and not from an overdone setting.

Radio, Antenna, and Signal Issues

If FM or AM reception is weak, the problem is often outside the receiver itself. The antenna system matters a lot more than people expect.

Weak or noisy radio reception

Possible causes include:

• Loose antenna plug
• Damaged antenna cable
• Poor antenna ground
• Weak signal in the area

Stations will not save

If presets do not stay stored, the constant power wire may be disconnected or miswired. Memory loss is one of the clearest signs of a power issue.

Static or fading stations

Try moving the vehicle to a different location first. If reception improves, the issue may simply be the signal.

If it does not improve:

• Inspect the antenna connection
• Check for window tint or aftermarket equipment causing interference
• Make sure the mast or factory antenna is intact

Resetting and Updating the Pioneer DMH-2770NEX

Sometimes the smartest move is to reset the system. A reset can clear minor bugs, restore normal function, and help isolate whether the issue is software or hardware.

When to reset

Use a reset if:

• The screen freezes often
• Bluetooth acts strangely
• CarPlay or Android Auto stops responding
• The unit behaves differently after a power event

How firmware updates help

Firmware updates may improve stability, compatibility, and performance. They can also fix bugs that affect mobile connections or screen behavior.

Before updating, make sure:

• The update file matches your exact model
• The power supply is stable
• You follow the update steps carefully

A failed update can create more problems than it solves. So it is worth slowing down and doing it right.

What a reset cannot fix

A reset will not repair:

• Broken wiring
• Bad speakers
• Failed USB ports
• Hardware damage from moisture or overheating

That distinction matters. A reset is helpful, but it is not magic.

Preventing Future Problems

Good troubleshooting is not just about fixing problems. It is also about preventing them from coming back.

Here are a few habits that help:

• Use quality USB cables
• Keep firmware updated
• Avoid overloading settings like EQ and bass boost
• Secure wiring properly during installation
• Keep the screen and ports clean
• Check battery health and charging system health
• Store paired devices neatly and remove old ones you do not use

Small habits make a big difference. A clean install and stable power can save you from many future headaches. Think of it like keeping your shoes tied before a long walk.

Frequently Asked Questions of Pioneer DMH-2770NEX Troubleshooting

Why does my Pioneer DMH-2770NEX keep resetting?

This usually points to a power or ground problem. Check the accessory wire, constant power wire, fuse, and ground connection first.

Why is my Pioneer DMH-2770NEX screen on but there is no sound?

The most common causes are muted audio, incorrect speaker wiring, amplifier issues, or a bad audio output setting. Start with volume, balance, and source checks before moving deeper.

Why won’t Apple CarPlay connect to my Pioneer DMH-2770NEX?

Most CarPlay problems come from a bad cable, phone permission issue, or outdated software. Try a certified cable, unlock the phone, and remove old pairings on both devices.

How do I reset my Pioneer DMH-2770NEX?

Use the reset button on the unit if it is available, or follow the manual’s reset procedure. A reset can help with freezes, connection issues, and small software glitches.

Why does Bluetooth keep disconnecting?

Bluetooth can disconnect because of interference, outdated pairings, weak phone settings, or distance from the receiver. Re-pairing the phone and clearing old device records often helps.

What should I do if the touchscreen is not responding?

First, clean the screen and restart the unit. If the problem continues, check for firmware updates and make sure the system is not frozen or suffering from a loose connection.

Conclusion

Pioneer DMH-2770NEX troubleshooting becomes much easier when you follow a simple path: check power, inspect wiring, test connections, and then move to software and device settings. Most problems with this receiver are not mysterious once you break them down into small pieces.

If you take the time to use these steps carefully, you can solve many issues without guesswork and avoid unnecessary replacements. Try the fixes that fit your symptoms, keep your wiring and firmware in good shape, and you will get much more reliable performance from the unit. If this guide helped, explore more car audio tips, subscribe for future updates, or leave a comment with the issue you are facing.
